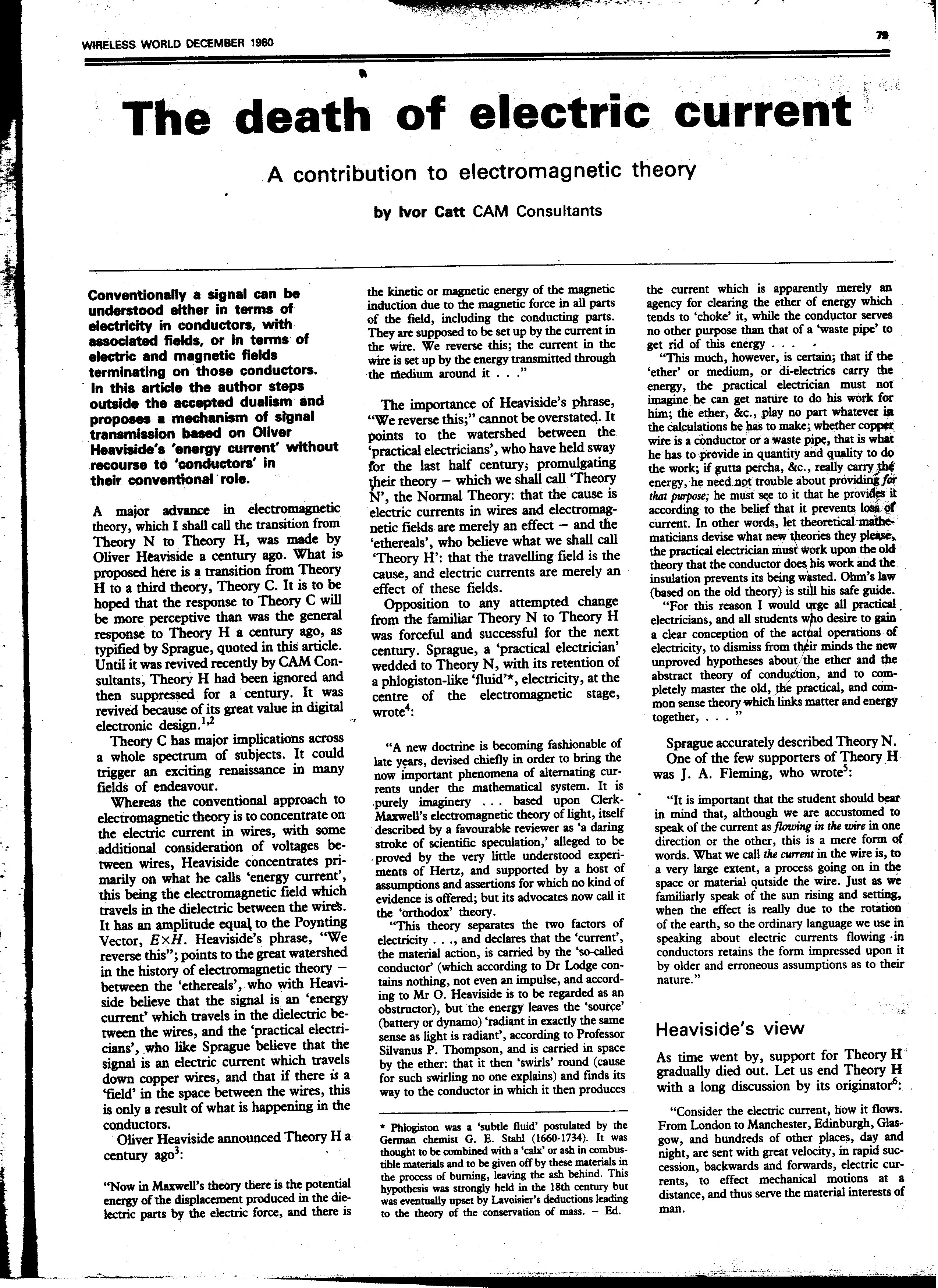

Discovered in 1976. Version with diagrams.p1 The Death of Electric Current
By Ivor Catt, Wireless World dec 1980
A major advance in electromagnetic theory, which I shall call the transition from Theory N to Theory H, was made by Oliver Heaviside a century ago. What is proposed here is a transition from Theory H to a third theory, Theory C. It is to be hoped that the response to Theory C will be more perceptive than was the general response to Theory H a century ago …. …. Electric charge does not exist according to Theory C. The so-called electric charge is merely the edge of two reciprocating energy currents. In the case of the so-called steady charged capacitor, the electric fields of the two energy currents add but the magnetic fields cancel, so that it has come to be thought that a charged capacitor is devoid of magnetic field. Now

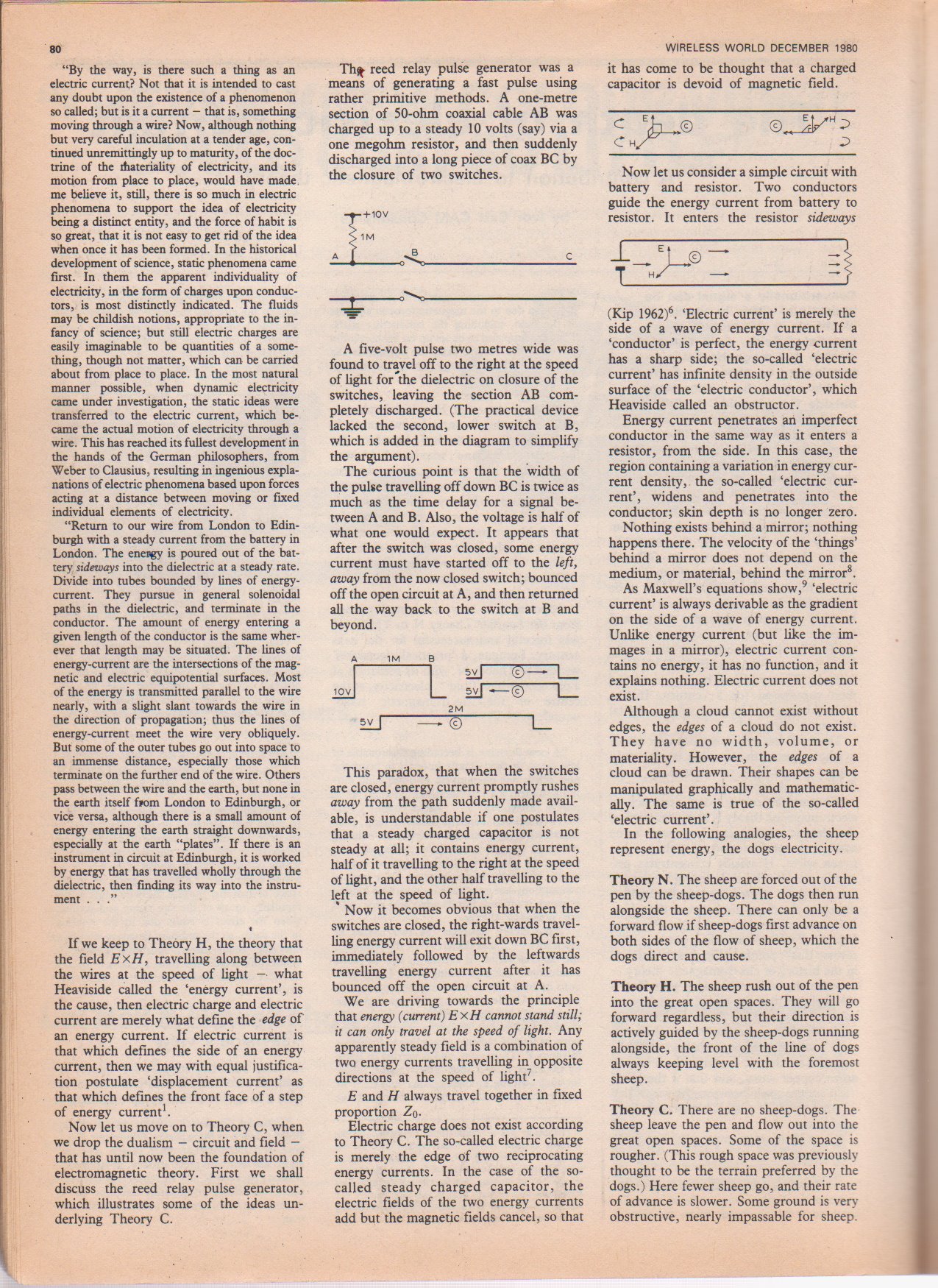

let us consider a simple circuit with battery and resistor. Two conductors
guide the energy current from battery to resistor. It enters the resistor sideways (A. F. Kip, Fundamentals of Electricity and Magnetism,
pub. McGraw-Hill 1962, p327). ‘Electric current’ is
merely the side of a wave of energy current. If a ‘conductor’ is perfect, the
energy current has a sharp side; the so-called ‘electric current’ has
infinite density in the outside surface of the ‘electrical conductor’, which
Heaviside called an obstructor. Energy
current penetrates an imperfect conductor inn the
same way as it enters a resistor, from the side. In this case, the region
containing a variation in energy current density,.
The so-called ‘electric current’, widens and penetrates into the conductor;
skin depth is no longer zero. Nothing
exists behind a mirror; nothing happens there. The velocity of the ‘things’
behind the mirror does not depend on the medium, or material, behind the
mirror. As
Maxwell’s equations show, ‘electric current’ is always derivable as the
gradient on the side of a wave of energy current. Unlike energy current (but
like the images in a mirror), electric current contains no energy, it has no
function, and it explains nothing. Electric current does not exist. Although
a cloud cannot exist without edges, the edges
of a cloud do not exist They have no width, volume, or materiality. However,
the edges of a cloud can be drawn. Their shapes can be manipulkated
graphically and mathematically. The same is true of the so-called ‘electric
current’. Theory
N. The sheep are forced out of the pen by the sheep-digs. The dogs then run
alongside the sheep. There can only be a forward flow if sheep-dogs first
advance on both sides of the sheep, which the dogs direct and cause. Theory
H. The sheep rush out of the pen into the great open spaces. They will go
forward regardless, but their direction is actively guided by the sheep-dogs
running alongside, the front of the dogs always keeping level with the
foremost sheep. Theory
C. There are no sheep-dogs. The sheep leave the pen and flow out into the
great open spaces. Some of the space is rougher. (This rough space was
previously thought to be terrain preferred by the dogs.) Here fewer sheep go,
and their rate of advance is slower. Some ground is very obstructive, nearly
impassable for sheep. Although
iut might appear that the sheep are actively guided

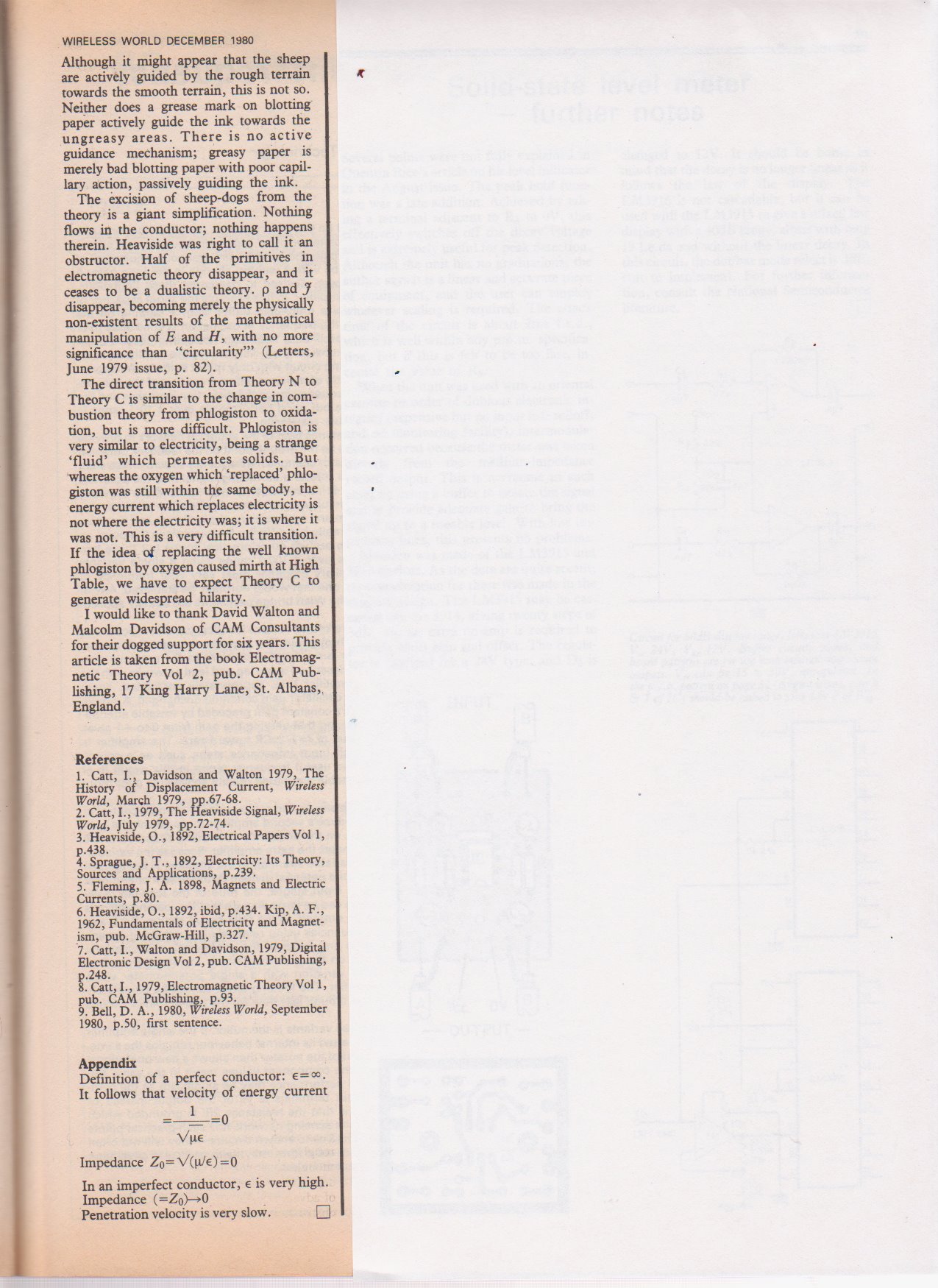

by the rough terrain towards the smooth terrain, this is not so . Neither does a grease mark on blotting paper actively
guide the ink towards the ungrreasy areas. There is
no active guidance mechanism; greasy paper is merely bad blotting paper with poor
capillary action, passively guiding the ink. The
excision of sheep-dogs from the theory is a giant simplification. Nothing
flows in the conductor; nothing happens therein. Heaviside was right to call
it an obstructor. Half of the primitives in electromagnetic
theory disappear, and it ceases to be a dualistic theory. r and J disappear,
becoming merely the physically non-existent results of the mathematical
manipulation of E and H, with no more significance than “circularity” [see
Letters in Wireless World, June 1979, p82). The
direct transition from Theory N to Theory C is similar to the change in
combustion theory from phlogiston to oxygen. Phlogiston is very similar to
electricity, being a strange ‘fluid’ which permeates solids. But whereas the
oxygen which ‘replaced’ phlogiston was still within the same body, the energy
current which replaces electricity is not where the electricity was; it is
where it was not,. This is a very difficult transition. If the idea of
replacing the well known phlogiston by oxygen caused mirth at High Table, we
have to expect Theory C to generate widespread hilarity. I
would like to thank David Walton and Malcolm Davidson …. For their dogged
support for six years. [This has now lengthened to 28 years.] …. . m qwertyuiop[]asdfghjkl;'#\zxcvbnm,./ QWERTYUIOP[]ASDFGHJKL;'\ZXCVBNM,./ mmmmmmmmmmmmmm eeeeeeeeeeeeeeeeee ./ ./ ./
./ ./ |
|
Genesis of The Catt Anomaly …Peter G. M. Dawe, Wireless World aug81. . Catt’s very interesting article in Wireless World December 1980 …. If he is correct in his analysis it would imply that a lot of our fundamental teaching in electronics is wrong… The author replies: Mr
Dawe’s recapitulation, para.
2, deals with a so-called ‘steady state’ situation. Conventional theory
covers for these quite well; it was developed for that purpose. However,
conventional theory cannot cope with the transient condition, as we shall
see. Consider the situation ¼ nanosecond after we close the switches in the
diagram below [of a battery connected through two switches and
then through two long parallel conductors, to a resistor.] A
voltage-current step has advanced three inches to the right. Behind the step,
there is a voltage drop between the wires. The E lines must terminate on
electrons in the lower wire. It follows that behind the step the lower
conductor contains more electrons per inch than is contained in the uncharged
section ahead of the step.. |
|
